Bitmain Antminer L9 Litecoin & Dogecoin Miner | BT-MINERS

The lifespan of mining hardware is influenced by usage intensity, environmental factors like temperature, humidity, and dust. Proper maintenance and optimal conditions can significantly extend its longevity.

Electricity costs play a crucial role in mining profitability, as high rates can quickly offset profit. Therefore, it is vital to access local electricity costs to determine if mining is viable. With high electricity costs and high liquidity of digital assets, investing in an energy-efficient miner becomes even more important.

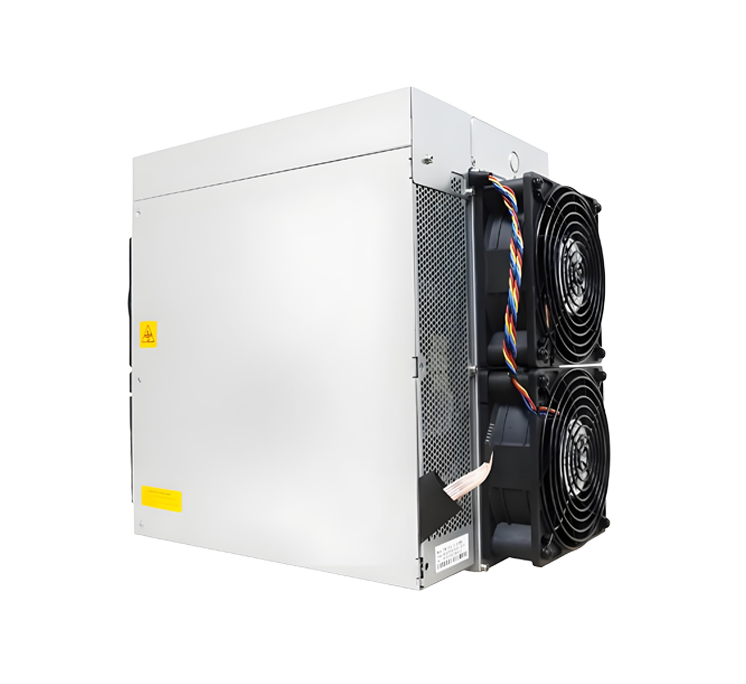

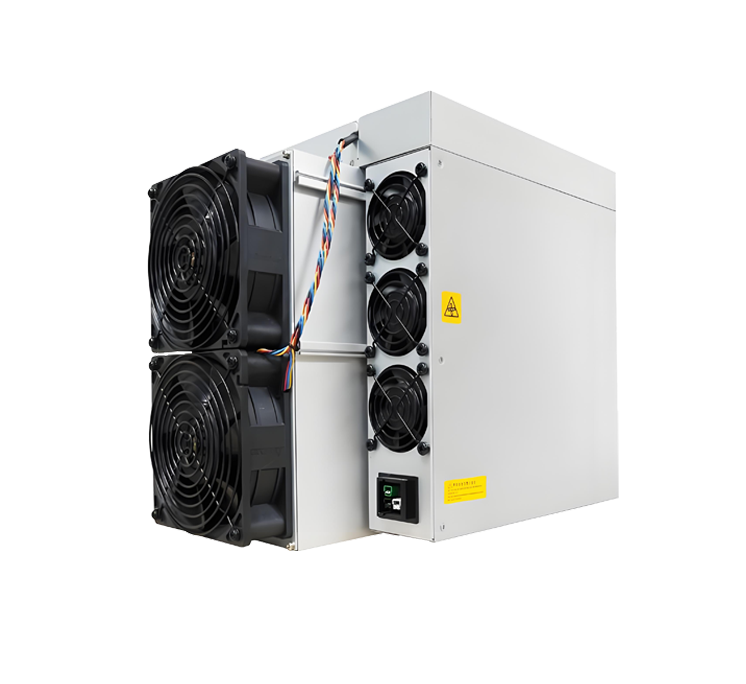

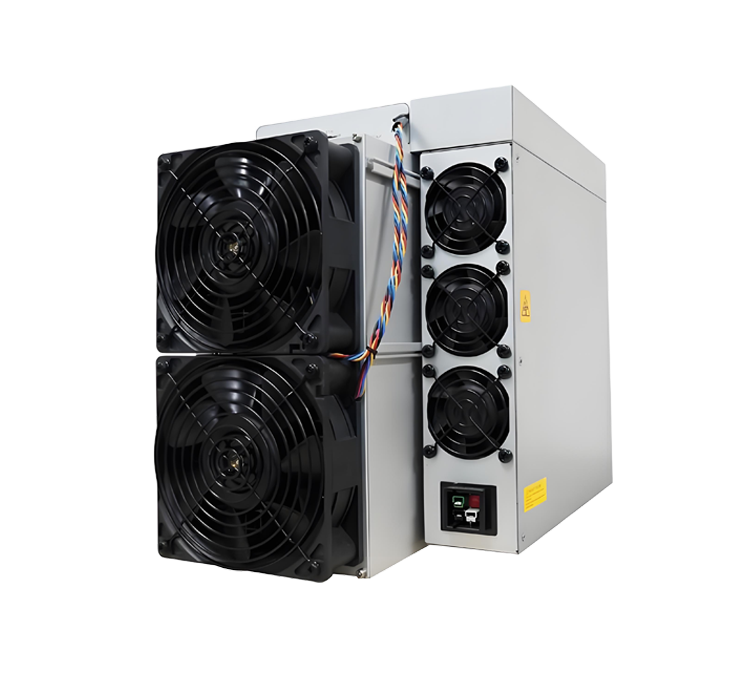

The Antminer L9 is a specialized ASIC (Application – Specific Integrated Circuit) mining machine developed by Bitmain. It is designed to mine cryptocurrencies that utilize the Scrypt algorithm, such as Litecoin (LTC), Dogecoin (DOGE), and Belcoin (BEL).

The typical hashrate of the Antminer L9 is 16 GH/s, with an actual fluctuation of ±3%. This high hashrate allows it to perform a large number of hash calculations per second, increasing the probability of successfully mining blocks in the Scrypt – based cryptocurrency networks.

At 25°C, the power on the wall for the Antminer L9 is 3360W, and its power efficiency is 210 J/GH. However, it should be noted that the actual power consumption may fluctuate by ±5%. This power consumption is a crucial factor to consider when evaluating the mining cost, as electricity expenses can significantly impact the overall profitability of mining operations.

The Antminer L9 requires a single – phase AC power supply. The input voltage should be in the range of 220 – 277V, with an input frequency range of 50 – 60Hz. The maximum input current is 20A. Using the correct power supply is essential to ensure the stable and proper operation of the miner, as incorrect voltage or current can cause damage to the device.

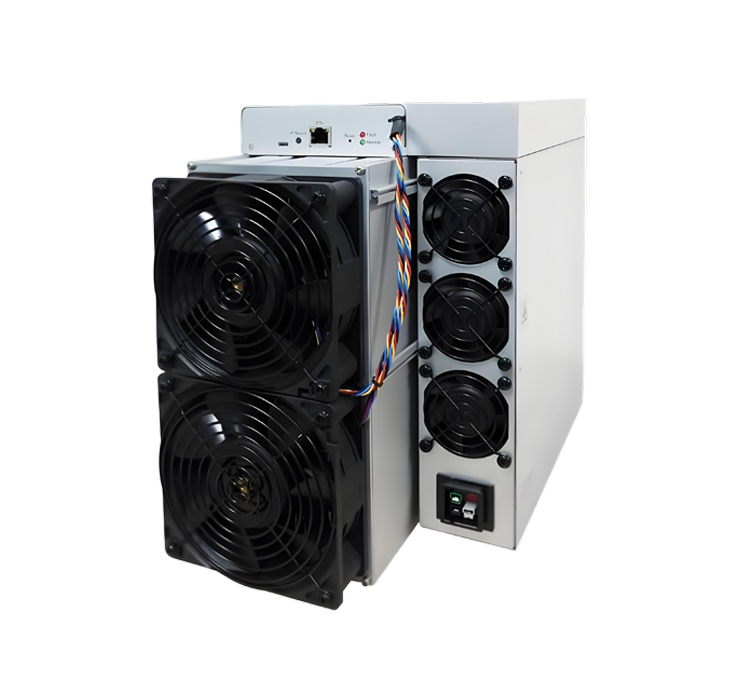

The Antminer L9 uses an RJ45 Ethernet 10/100M connection for network access. This connection method enables the miner to communicate with the mining pool servers, submit hash results, and receive new mining tasks in a timely manner. A stable network connection is crucial for the continuous and efficient operation of the mining process.

Without packaging, the size of the Antminer L9 is 400mm×195mm×290mm, and it has a net weight of 14.1kg. When packaged, the dimensions are 570mm×316mm×430mm, with a gross weight of 15.9kg. These physical dimensions and weights need to be considered when planning the installation and transportation of the miner.

At 25°C, the noise level of the Antminer L9 is 75 dBA when the fan is running at its maximum rotation speed (rpm). This noise level is relatively high compared to some consumer – grade electronics but is within the expected range for a high – performance mining machine. Appropriate noise – reducing measures may be needed if the miner is installed in a noise – sensitive environment.

In the Scrypt – based mining market, the Antminer L9’s 16 GH/s hashrate is relatively high, outperforming many previous – generation Scrypt miners. Its power efficiency of 210 J/GH is also competitive, which means it can achieve a relatively high hashrate while consuming a reasonable amount of power. However, performance can vary depending on factors such as the specific model of the competing miner, the age of the miner, and the current state of the cryptocurrency network (e.g., network difficulty).

As the network difficulty of the cryptocurrency (e.g., Litecoin, Dogecoin) increases, the Antminer L9 needs to perform more hash calculations to have a chance of mining a block. If the difficulty rises significantly, the miner’s relative performance in terms of block – mining probability may decrease. However, the L9’s high hashrate gives it an advantage in such situations compared to miners with lower hashrates. The miner’s software and hardware are designed to adapt to changing network difficulties to some extent, but a very steep increase in difficulty can impact profitability.

First, ensure that you have a suitable location that meets the environmental requirements (correct temperature, humidity, and altitude). Connect the Antminer L9 to a stable power source with the appropriate voltage and current. Then, use an Ethernet cable to connect the miner to your local network. After powering on the miner, you can access its web – based interface by entering its IP address (which can usually be found through your local network settings or the Bitmain – provided software) into a web browser. From the interface, you can configure settings such as the mining pool address, username, and password.

The Antminer L9 comes with built – in software that can be accessed through its web – based interface. This software allows you to configure mining settings, monitor the miner’s performance (such as hashrate, power consumption, and temperature), and manage firmware updates. There is no need for third – party software for basic operation. However, some miners may choose to use additional monitoring or management tools provided by Bitmain or other third – party vendors for more advanced features, such as remote monitoring and more detailed analytics.

The specific warranty details for the Antminer L9 can vary by region and retailer. Generally, Bitmain provides a certain period of warranty coverage, during which they will repair or replace the miner if it has manufacturing defects. It is important to check the warranty terms and conditions provided with your purchase, as well as the process for making a warranty claim. This may involve providing proof of purchase, describing the problem with the miner, and following the instructions provided by Bitmain or the authorized retailer.

If you need technical support for the Antminer L9, you can first refer to the user manual provided by Bitmain, which contains a lot of useful information on installation, setup, and common troubleshooting. You can also visit Bitmain’s official website, where they may have a support section with FAQs, technical documentation, and contact information for their support team. Additionally, some retailers may offer their own technical support services for the products they sell. If you encounter a problem, it is recommended to contact Bitmain’s support team directly or through the channels recommended by the retailer, providing as much detail as possible about the issue you are facing, such as the miner’s model, serial number, and a detailed description of the problem.

The profitability of the Antminer L9 depends on several factors, including the current price of the mined cryptocurrency (e.g., Litecoin, Dogecoin), the network difficulty of the cryptocurrency, and the cost of electricity. When the cryptocurrency price is high and the network difficulty is relatively low, and with a reasonable electricity cost, the L9 can be quite profitable. For example, at a certain point in time, with a Litecoin price of $X and a network difficulty of Y, and an electricity cost of $Z per kWh, the daily profit could be calculated based on the miner’s hashrate, power consumption, and the block reward of Litecoin. However, these factors are highly volatile. The cryptocurrency market is known for its price fluctuations, and the network difficulty adjusts regularly to maintain a relatively stable block – generation time. Additionally, electricity costs can vary significantly depending on the location and the type of electricity plan. Miners need to continuously monitor these factors to assess the profitability of the Antminer L9.

Electricity cost is a major factor in determining the profitability of the Antminer L9. With a power consumption of 3360W, the daily electricity consumption is relatively high. For example, if the electricity cost is $0.1 per kWh, the daily electricity expense for running the L9 is 3.36 kWh × $0.1/kWh × 24 hours = $8.064. As the electricity cost increases, the profit margin from mining decreases. In regions with high electricity costs, the Antminer L9 may become less profitable or even result in losses. Conversely, in areas with low – cost electricity, the miner has a better chance of generating a significant profit. Miners often consider the electricity cost when choosing the location to operate their mining equipment. Some may even look for regions with favorable electricity rates or alternative energy sources to reduce the impact of electricity costs on profitability.

The Bitmain Antminer L9 is a dedicated Scrypt ASIC miner designed for mining Litecoin (LTC) and Dogecoin (DOGE).

It is purpose-built for Scrypt mining and delivers significantly higher hashrate and energy efficiency compared to GPU or older-generation ASIC miners.

The Antminer L9 mines cryptocurrencies based on the Scrypt algorithm, including:

• Litecoin (LTC)

• Dogecoin (DOGE)

Through merged mining, miners can earn DOGE alongside LTC without additional power consumption.

The Antminer L9 can be used at home, but users should be aware of:

• High noise levels (around 75 dBA)

• Significant heat output

• High power requirements (220–277V)

For apartments or noise-sensitive environments, professional hosting or dedicated mining spaces are often preferred.

When purchasing from BT-MINERS, customers benefit from:

• Verified Bitmain hardware

• Professional ASIC-focused support

• Secure global shipping options

• Experience serving both home miners and industrial operations

Our team specializes in mining hardware and understands real-world mining requirements.
